Product code: AF-IND
Technical foil in tempers O to H24 for insulation, HVAC and industrial conversion.
| Alloy | 1050 / 1060 / 1100 / 3003 / 3004 |
|---|---|
| Temper | O / H14 / H16 / H18 / H22 / H24 |
| Thickness | 0.02 - 0.2 mm |
| Width | 200 - 1500 mm |
| Surface | Mill Finish / Bright |
| Application | Industrial / Insulation / HVAC |
| Minimum order quantity | 3 MT per size |
| Packing | Eye to sky or eye to wall, wooden pallet |
| Loading port | Qingdao / Tianjin / Shanghai |
| OEM / custom size | Custom temper, width and mechanical properties |

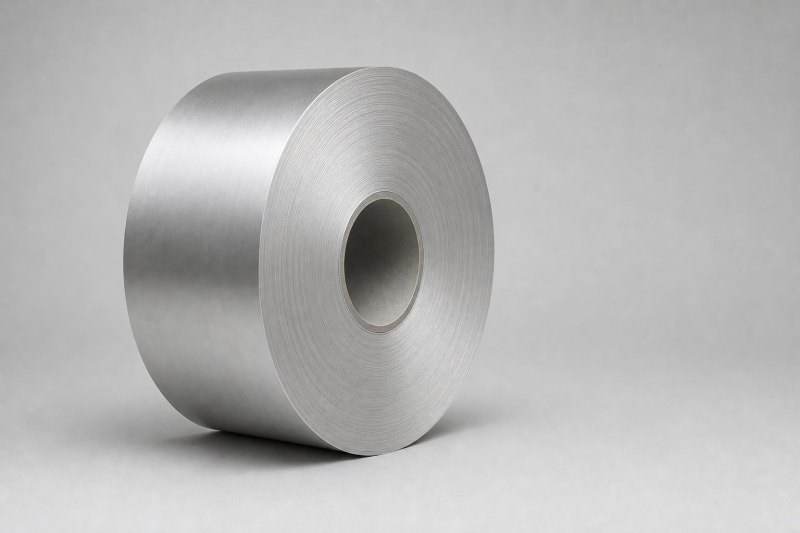

Industrial aluminium foil covers the heavier part of our range, 0.02 to 0.2 mm in 1050, 1060, 1100, 3003 and 3004 alloys, offered in O through H24 tempers.
Typical uses are duct and pipe insulation facing, foil-scrim-kraft laminates, vapour barriers and general industrial wrapping. Mechanical properties can be set to suit your forming or laminating process.
Industrial & Technical Foil
3004 foil 0.18 mm H18 for stiffener and reinforcing plates, 1200 mm wide, 76/152 cores.
Industrial & Technical Foil
3003 foil 0.15 mm H18 for structural load-bearing parts, 1200 mm wide, 76/152 cores.
Industrial & Technical Foil
3004 foil 0.12 mm H18 for load-bearing technical parts, 1200 mm wide, 76/152 cores.
